RS310-1 FORP

Play Centre GORILLA with slide

  • 2 Year
  • 6.87 x 7.89 x 2.86 m
  • Safety

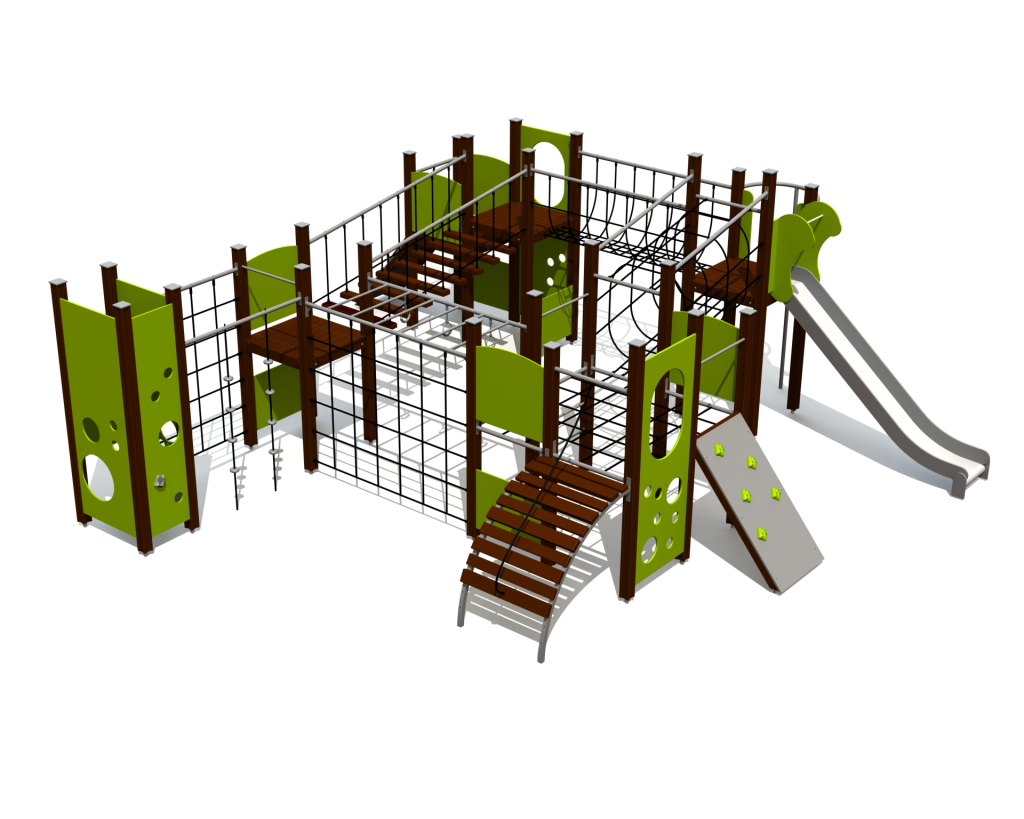

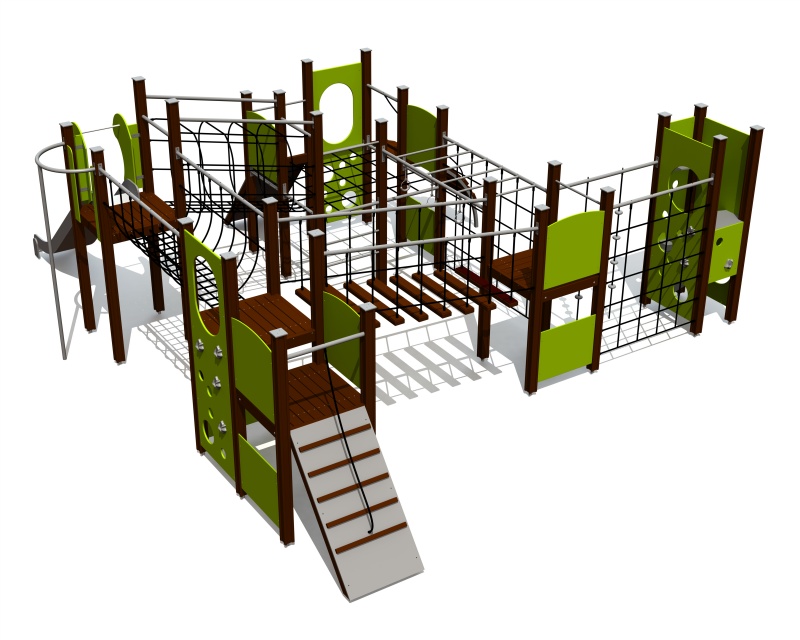

This fun and versatile play centre that satisfies all climbing needs offers a countless number of ways to develop dexterity, strength, courage and balance skills. A ramp with rungs, an arch bridge and a rock climbing wall offer access to the centre’s three platforms. The platforms are connected by a bridge with moving steps, a net tunnel, a horizontal ladder, a net bridge with handrails, and a climbing net. In addition, the play centre is equipped with vertical and horizontal climbing nets, several climbing ropes and a climbing wall with holes. A slide and a fireman’s pole offer ways for slide down. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

Product consists of

  • Platforms 2 pcs with a height 1.55 m, Plastic covered laminated wood
  • Platforms 2 pcs with a height 1.2 m, Plastic covered laminated wood
  • Slides 1 pcs with a height 1.55 m, Stainless-steel, HDPE plastic sides
  • Climbing walls 5 pcs, HDPE plastic
  • Climbing nets 3 pcs, 16 mm six-strand PES cover braided steel ropes
  • Ladders 1 pcs, Galvanized and powder-coated steel
  • Bridges 3 pcs
  • Tunnels 1 pcs, Plastic
  • Slopes 2 pcs, Plywood
  • Fireman poles 1 pcs, Galvanized and powder-coated steel
  • Posts 26 pcs, Laminated wood
  • Panels/Plates 7 pcs, HDPE plastic
  • Grips for hands and/or feet 11 pcs, HDPE plastic
  • Tubes 23 pcs, Galvanized and powder coated steel

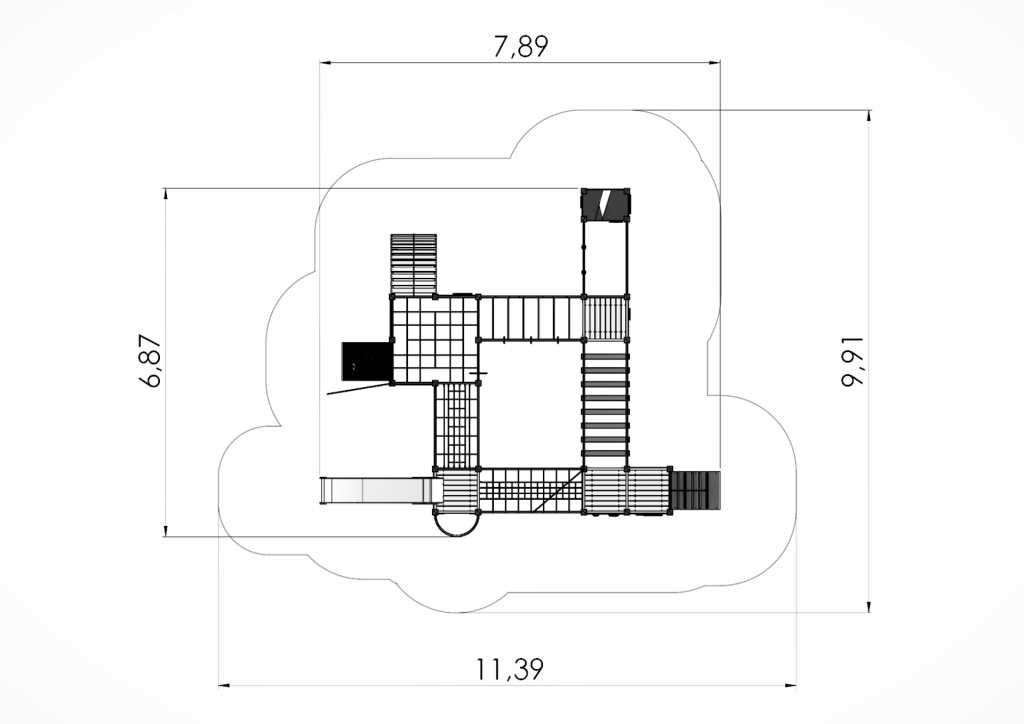

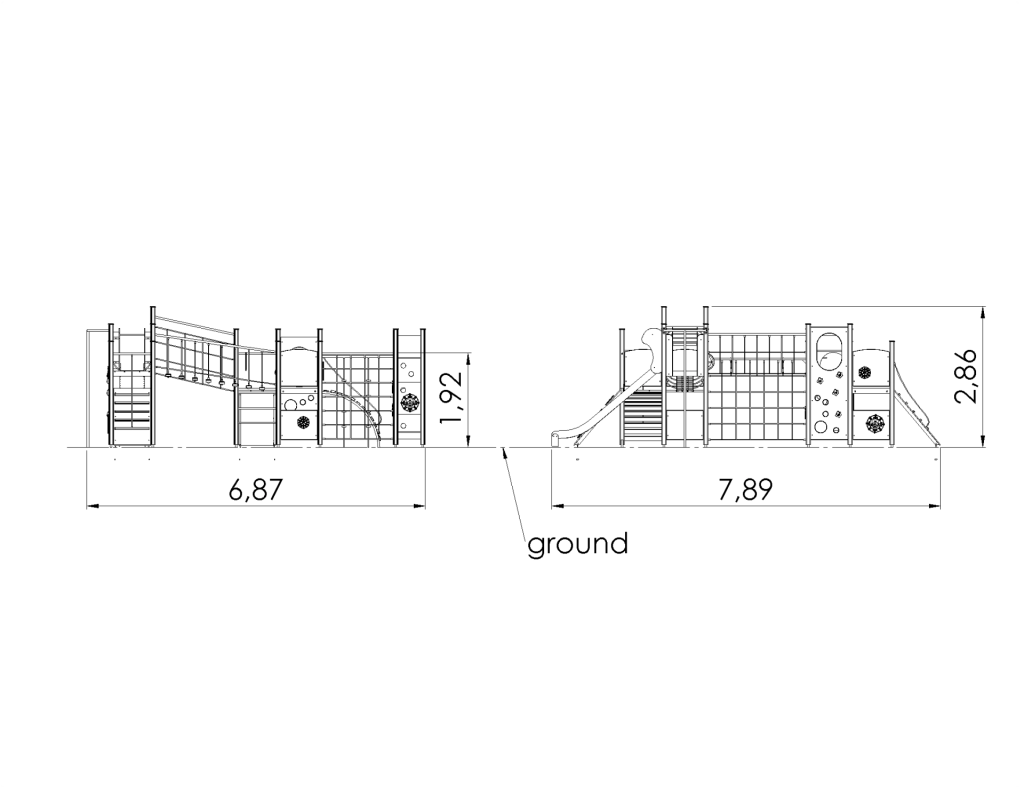

Product Features

  • Safety area width: 9.91 m
  • Safety area length: 11.39 m
  • Width of structure: 6.87 m
  • Length of structure: 7.89 m
  • Height of structure: 2.86 m
  • Max. fall height: 1.92 m
  • Recommended age of children: 4+
  • For simultaneous use by several children: 1-24
